The fundamental syntax of the grandMA2 has been preserved and extended to facilitate the new functionality.
The grandMA3 software has an elegant new system-architecture incorporating new fixture, feature and effects-handling at its very heart. These ground-breaking concepts from top industry visionaries, are presented within a refined user interface, and are designed to make practical tasks more intuitive. Selecting fixtures, adjusting values, storing presets and playing back cues should all feel familiar, but improved in many details of the process.
Better overview, faster access and more accurate information will create an improved user experience in programming and busking a show.
Fixture information is now generic and allows simpler sharing of programmed data between fixtures. We also support the new GDTF (General Device Type Format) natively, allowing fixture manufactures to ensure their own fixtures are controlled as intended.
For more details of the current software version see the software category in the product section.

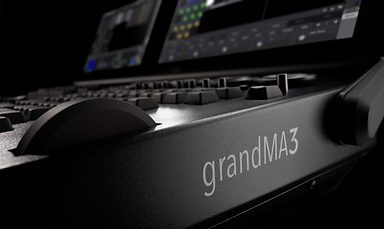

grandMA3 compact XT
The grandMA3 compact XT console is the larger of the two compact models, offering the full system benefits of the grandMA3 system, housed in a compact and lightweight format.
The grandMA3 compact XT console is the larger of the two compact models, offering the full system benefits of the grandMA3 system, housed in a compact and lightweight format. Easy to transport, the compact models are ideal for owner/operators and also the console of choice for tech-desk duties.
The compact XT console features 2 huge multi-touch monitors, 5 dual encoders and a complete command section almost identical to the larger models.
With 60 physical playbacks, 16 assignable x-keys and a dedicated master playback section the grandMA3 compact XT console provides plenty of playback options.
The grandMA3 compact XT console includes 4,096 control parameters as standard, making it an ideal choice for small and medium sized professional entertainment lighting applications. The system size is scalable to 250,000 parameters with the use of additional grandMA3 processing units.
The grandMA3 compact XT is compatible with grandMA2 and grandMA3 software.
Real-time control for up to 250,000 parameters per session in connection with grandMA3 processing units
6 DMX outputs, 1 DMX input
2 internal foldable monitor multi-touch screens
1 external multi-touch screen can be connected
39 rotary RGB backlit encoder
5 dual encoders
15 backlit motorized 60mm faders
60 separate playbacks
16 assignable x-keys
3 etherCON connectors, 5 USB connectors
2 backlit motorized A/B faders 100mm
Individually backlit and dimmable silent (clickless) keys
The grandMA3 control consoles are compatible with shows created on grandMA2 consoles. Where features allow, existing shows can be exported from grandMA2 software 3.4 and later, for use in all grandMA3 console models.
All grandMA3 console models (except the grandMA3 onPC command wing) incorporate a fully featured Mode2, which runs native grandMA2 software.
